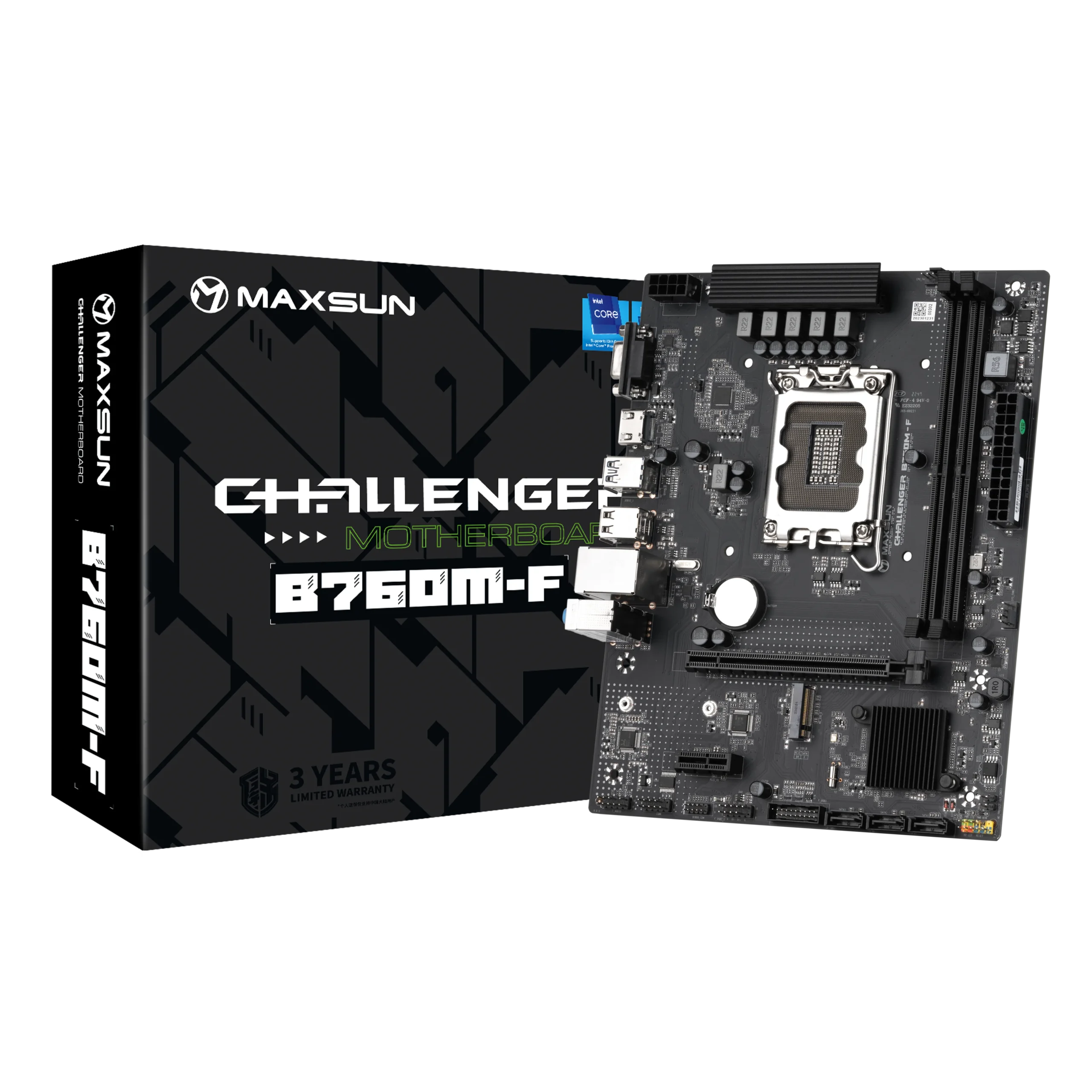

The MAXSUN MS-Challenger B760M-F LGA1700 DDR4 Micro-ATX Motherboard uses the Intel B760 chipset and LGA1700 socket for compatible 12th and 13th Gen Intel processors. It combines two DDR4 DIMMs, PCIe 4.0 graphics and M.2 expansion, Gigabit Ethernet and Realtek ALC897 audio in an M-ATX PCB.
MAXSUN MS-Challenger B760M-F LGA1700 DDR4 Micro-ATX Motherboard Specifications and Features
Key Features
- Intel B760 Platform – Supports compatible 12th and 13th Gen Intel Core processors plus Pentium Gold and Celeron processors.
- DDR4 Memory – Two DIMM slots support up to 64GB with dual-channel operation and Intel XMP 2.0.
- PCIe 4.0 Expansion – Provides a PCIe 4.0 x16 graphics slot and a PCIe 3.0 x1 slot.
- PCIe 4.0 M.2 – One M.2 socket supports PCIe 4.0 x4 NVMe storage.
- Gigabit Ethernet – Realtek RTL8111H provides 1Gb LAN connectivity.
- Realtek Audio – Realtek ALC897 provides 5.1-channel High Definition Audio.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | MAXSUN MS-Challenger B760M-F |
| CPU Socket | Intel LGA1700 |
| Supported Processors | Intel Core 12th / 13th Gen; Pentium Gold; Celeron |
| Chipset | Intel B760 |
| Memory | 2 x DDR4 DIMM, up to 64GB, dual-channel |
| Memory Profile | Intel XMP 2.0 |
| Primary Expansion | 1 x PCIe 4.0 x16 |
| Additional Expansion | 1 x PCIe 3.0 x1 |
| M.2 Storage | 1 x PCIe 4.0 x4 M.2, sizes 2242 / 2280 |
| SATA | 3 x SATA 6Gb/s |
| Ethernet | Realtek RTL8111H 1Gb LAN |
| Audio | Realtek ALC897, 5.1-channel High Definition Audio |
| Display Outputs | HDMI up to 4K at 30Hz; VGA |
| USB | Front and rear USB 3.2 Gen 1 plus USB 2.0 |
| Form Factor | M-ATX, 225 x 179 mm |
