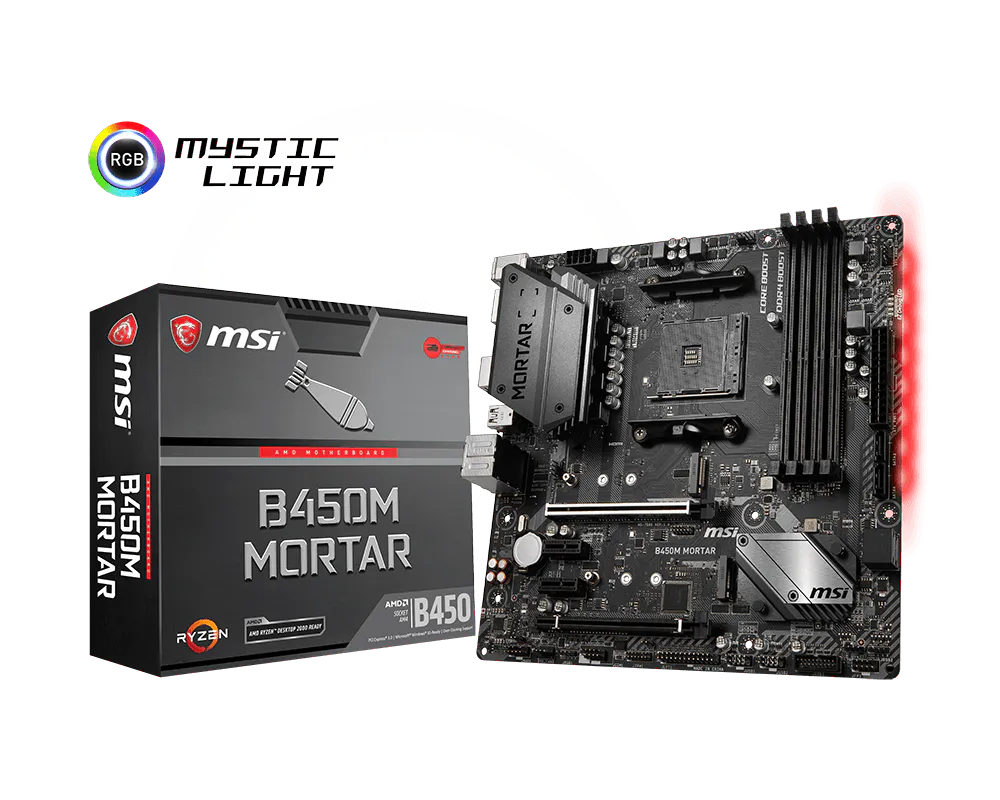

The MSI B450M MORTAR AM4 DDR4 Micro-ATX Motherboard (Used) is an AMD B450 micro-ATX motherboard for Socket AM4 processors. It provides four DDR4 DIMM slots, two M.2 sockets, four SATA ports, PCIe expansion, Gigabit LAN and rear USB 3.1 Gen 2 Type-A and Type-C connectivity.
MSI B450M MORTAR AM4 DDR4 Micro-ATX Motherboard (Used) Specifications and Features
Key Features
- AMD B450 Platform – Uses the AMD B450 chipset and Socket AM4 processor interface.
- Four DDR4 DIMMs – Four DDR4 slots support dual-channel memory operation.
- Dual M.2 Storage – Two M.2 slots are available for solid-state storage.
- PCIe Expansion – Provides two PCIe x16 slots plus additional PCIe x1 expansion.
- Gigabit LAN – Realtek RTL8111H provides Gigabit wired networking.
- USB Type-C – Rear connectivity includes USB 3.1 Gen 2 Type-C and Type-A ports.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | MSI B450M MORTAR |
| CPU Socket | AMD Socket AM4 |
| Chipset | AMD B450 |
| Memory | 4 x DDR4 DIMM, dual-channel |
| Primary Expansion | PCIe 3.0 x16 |
| Additional Expansion | Second PCIe x16 slot plus PCIe x1 slots |
| M.2 Storage | 2 x M.2 slots |
| SATA | 4 x SATA 6Gb/s |
| Ethernet | Realtek RTL8111H Gigabit LAN |
| Audio | Realtek ALC892 High Definition Audio |
| Display Outputs | DisplayPort and HDMI |
| Rear USB | USB 3.1 Gen 2 Type-A and Type-C plus additional USB ports |
| Multi-GPU | AMD CrossFire support |
| Form Factor | Micro-ATX |
