Description
MSI GAMING X TRIO Thermal Design

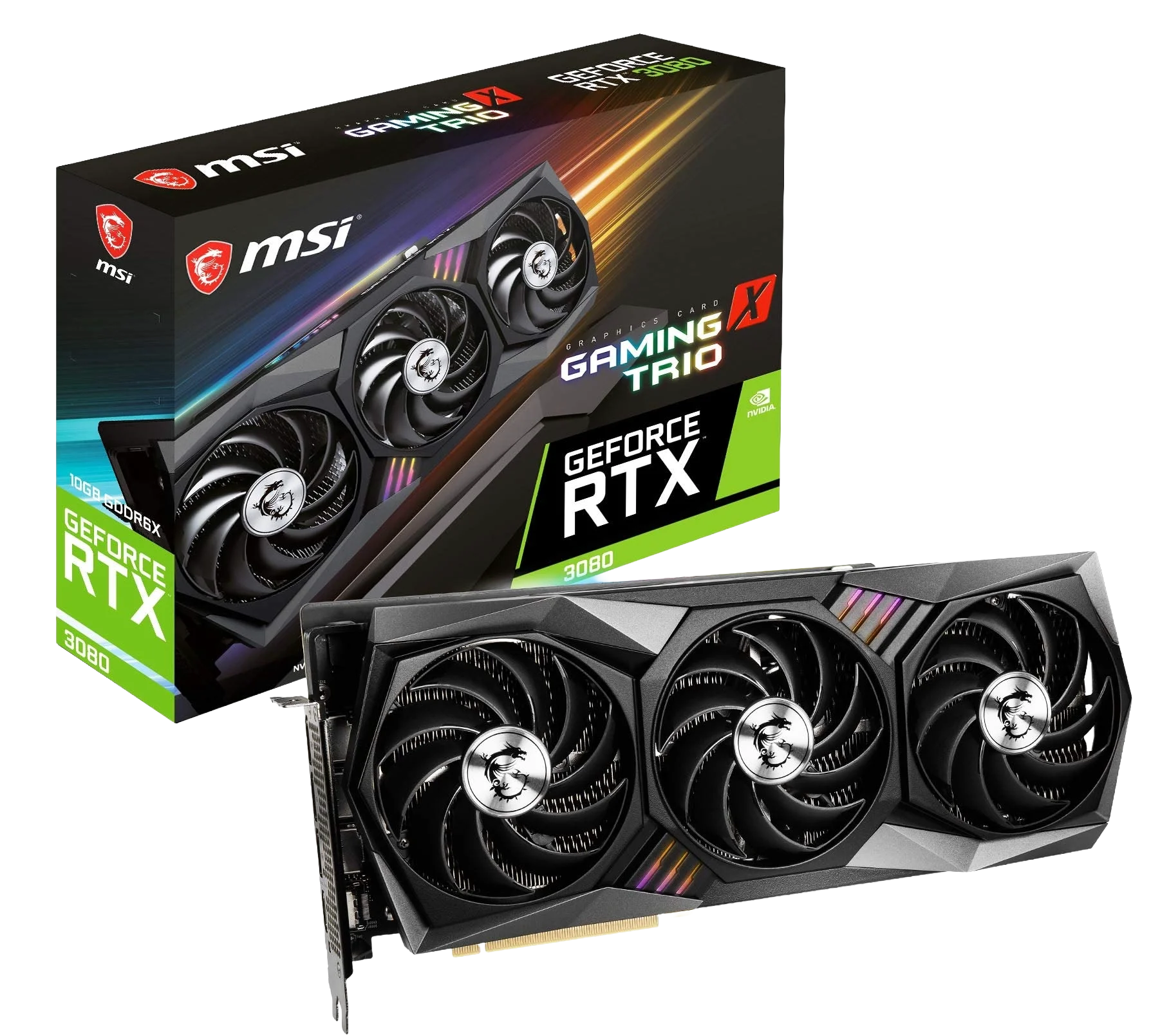

The MSI GeForce RTX 3080 GAMING X TRIO 10G uses the TRI FROZR 2 cooling platform to manage the heat generated by its 340W graphics board. TORX FAN 4.0 fans create focused airflow, while Core Pipes spread heat across the heatsink. Airflow Control and Zero Frozr further manage cooling behavior according to GPU load.
RTX 3080 Hardware
At its core is an NVIDIA GeForce RTX 3080 GPU with 8704 CUDA cores and a factory boost clock of 1815 MHz. Its 10GB of GDDR6X memory operates at 19 Gbps over a 320-bit bus, providing substantial bandwidth for high-resolution gaming and GPU-intensive applications.
| GPU | NVIDIA GeForce RTX 3080 |
| CUDA Cores | 8704 |
| Boost Clock | 1815 MHz |
| Memory | 10GB GDDR6X |
| Memory Bus | 320-bit |
| Memory Speed | 19 Gbps |
| Interface | PCI Express 4.0 |
| DisplayPort | 3 x DisplayPort 1.4a |
| HDMI | 1 x HDMI 2.1 |
| Maximum Displays | 4 |
| Maximum Digital Resolution | 7680 x 4320 |
| Power Consumption | 340W |
| Power Connectors | 3 x 8-pin |
| Recommended PSU | 750W |
| Dimensions | 323 x 140 x 56 mm |
