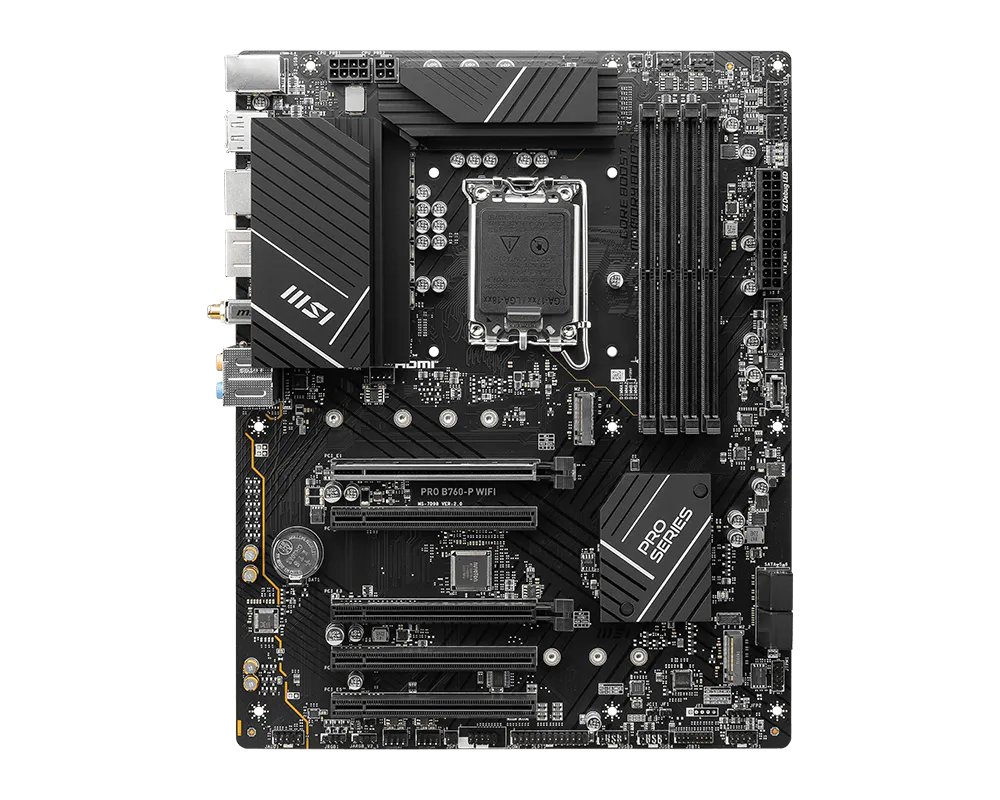

The MSI PRO B760-P WIFI DDR4 LGA1700 ATX Motherboard combines the Intel B760 chipset with support for compatible 14th, 13th and 12th Gen Intel processors. Four DDR4 DIMMs, PCIe 4.0 expansion, dual M.2 storage, 2.5Gb LAN and Wi-Fi 6E provide a broad connectivity set for an ATX system.
MSI PRO B760-P WIFI DDR4 LGA1700 ATX Motherboard Specifications and Features
Key Features
- Intel LGA1700 – Supports Intel Core 14th, 13th and 12th Gen processors plus compatible Pentium Gold and Celeron processors.
- DDR4 Memory – Four DIMM slots support up to 128GB with Intel XMP and dual-channel operation.
- PCIe 4.0 Expansion – The motherboard provides PCIe 4.0 x16 expansion for graphics and additional PCIe slots.
- Dual M.2 – Two M.2 slots support PCIe 4.0 x4 storage, with four SATA 6Gb/s ports also available.
- 2.5Gb LAN – Realtek 2.5Gb Ethernet provides high-speed wired network access.
- Wi-Fi 6E – Integrated Wi-Fi 6E and Bluetooth 5.3 provide wireless connectivity.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | MSI PRO B760-P WIFI DDR4 |
| CPU Socket | Intel LGA1700 |
| Supported Processors | Intel Core 14th / 13th / 12th Gen; Pentium Gold; Celeron |
| Chipset | Intel B760 |
| Memory | 4 x DDR4 DIMM, up to 128GB |
| Memory Profile | Intel XMP |
| Primary Expansion | PCIe 4.0 x16 |
| M.2 Storage | 2 x PCIe 4.0 x4 M.2 |
| SATA | 4 x SATA 6Gb/s |
| Ethernet | Realtek 2.5Gb LAN |
| Wireless | Wi-Fi 6E; Bluetooth 5.3 |
| Display Outputs | HDMI 2.1 and DisplayPort 1.4 |
| Audio | Realtek ALC897, 7.1-channel High Definition Audio |
| USB | Rear USB 10Gbps Type-A and Type-C plus additional USB ports |
| Form Factor | ATX, 243.84 x 304.8 mm |
