Description
High-Capacity RDNA 3 Graphics

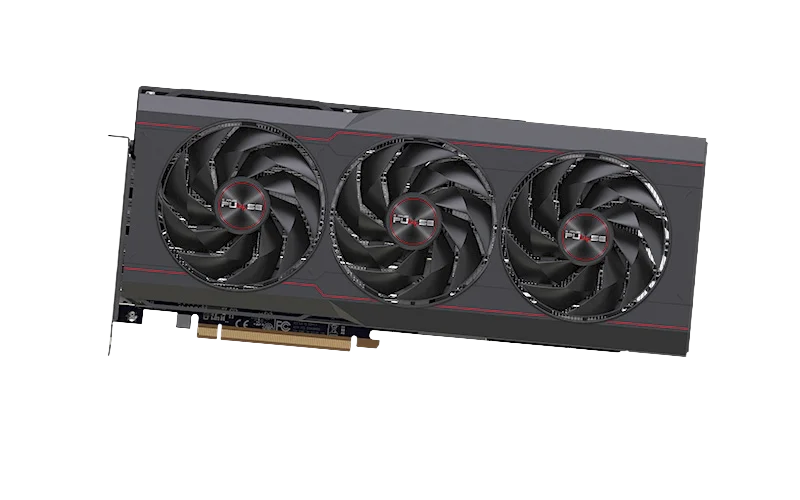

The SAPPHIRE Radeon RX 7900 XT pairs AMD’s RDNA 3 architecture with a substantial 20GB GDDR6 frame buffer. Its 84 Compute Units and 5376 stream processors are supported by a 320-bit memory interface and 80MB of Infinity Cache. This combination gives the card the memory capacity and graphics resources expected from a high-end RX 7900-series GPU.
Reference-Design Connectivity
The reference-format RX 7900 XT supports DisplayPort 2.1, HDMI 2.1 and USB Type-C connectivity, along with resolutions up to 8K. Its compact-for-class 276 mm length and 2.5-slot format distinguish it from many larger custom RX 7900 XT designs.
Specifications
| Matched Part Number | 21323-01-20G |
| GPU | AMD Radeon RX 7900 XT |
| Architecture | AMD RDNA 3 |
| Compute Units | 84 |
| Stream Processors | 5376 |
| Game Clock | 2000 MHz |
| Boost Clock | Up to 2400 MHz |
| Memory | 20GB GDDR6 |
| Memory Bus | 320-bit |
| Memory Speed | Up to 20 Gbps |
| Memory Bandwidth | Up to 800 GB/s |
| Infinity Cache | 80MB |
| Interface | PCI Express 4.0 x16 |
| Connectivity | DisplayPort 2.1, HDMI 2.1, USB Type-C |
| Card Length | 276 mm |
| Slot Size | 2.5-slot |
| Typical Board Power | 315W |
| Power Connectors | 2 x 8-pin |
